Dancing Room / SiMon Series

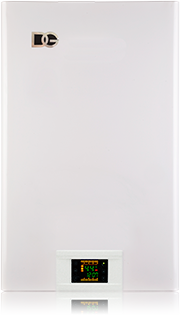

SiMon series gas boilers(dual-use),can be applied for dancing room heating & hot water within 200 square meter.

● Power range:20/26/31kw, maximum for 200 square meters’heating and hot water.
● LCD display, button controls, user-friendly design, beautiful and stylish.
● Power proportional adjustment 25% -100%, thermal efficiency of over 90%.
● Carbon monoxide emissions: 60-160ppm, more energy efficient and eco-friendly.
● Dual safety valve, dual temperature control, higher security.
● Imported proportional gas valve; automatic adjustment; balanced, stable and energy-efficient.
● With failure analysis system, precisely analyze the failure cause for more efficient maintenance.


Product Name
Gas Boilers (Dual-use)
Power range(Kw)
Applicable Gas Natural Gas(12T)
Gas pressure(Pa)
2000
Gas pressure range(Pa)
1500~3000
Exhaust System
Forced exhaust type
Input Power(Kw)
20-8/26-10/31-12
Output Power(Kw)
18-7/23-9/27-11
Thermal efficiency %(CH / DHW)
88/88
Standard
GB25034-2010
CH temperature adjustment range(℃)
30-80
DHW temperature adjustment range(℃)
30-60
DHW productive rate△T=30K(kg/min)
8.3/10.5/12.5
Maximum pressure of heating system(Mpa)
0.3
DHW applicative pressure(Mpa)
0.1~0.6
Power supply(V)
~220±10%(50Hz)
Electric power(W)
100/115/140
Protection grade
Class I
Waterproof grade
IPX4
Dimensions(mm)
20(Kw)456X740X250
26(Kw)456X740X250
31(Kw)510X800X350
Weight(Kg)
35/36/46
Energy efficiency index Class 2
Safety devices Anti-temperature,anti-dry,etc. more than 10 kinds of sevurity measures
